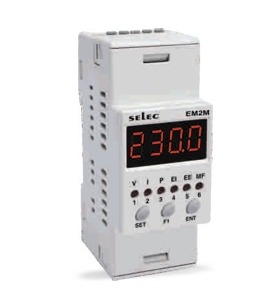

Direct Measuring Energy Meter
- Energy Standard – Class 1.0 as per IEC 62053-21
- Direct measuring up to 100A
- Multifunction parameter monitoring (V, A, PF, Hz, W, Wh, VA, VAh, VARh, Max Demand & Import Energy)
- Protocols available: MODBUS RTU variants
- MQTT variant (Wi-Fi)
| Product Code | Description | HSN Code |
|---|---|---|
| EM4M-3P-W-100A | 3Ø Direct 100A kWh meter, 85 to 285V AC (L-N), 154 to 494V AC (L-L), with built-in Wi-Fi, MQTT protocol | 90303390 |
| EM4M-3P-C-100A | 3Ø Direct 100A kWh meter, self-powered, with dual source, 2 pulse outputs & RS485 communication | 90303390 |
| EM4CAM-3P-C-100A | 3Ø Direct 100A kWh meter with RS485 communication | 90303390 |
| EM2M-1P-W-100A | 1Ø Direct 100A kWh meter, self-powered, 184 to 276V AC with built-in Wi-Fi, MQTT protocol | 90303390 |
| EM2M-1P-C-100A | 1Ø Direct 100A kWh meter, self-powered, 184 to 276V AC with RS485 communication | 90303390 |
| EM2M-1P-C-63A | 1Ø Direct 63A kWh meter, self-powered, 184 to 276V AC with RS485 communication | 90303390 |

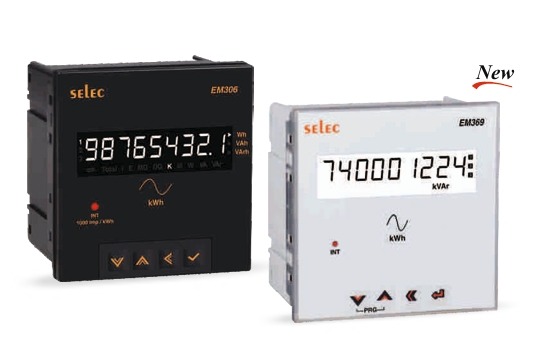

CT Operated Energy Meter
- Energy Standard – Class 1.0 as per IEC 62053-21
- Bright LED / LCD Displays
- RS485 Communication MODBUS RTU Protocol
- Pulse output (EM36-8-CE, EM306)
| Product Code | Description | HSN Code |
|---|---|---|
| EM36-9-C-CE-CL05 | 3Ø LCD kWh meter with 9 digits display, accuracy class 0.5S, dual source & RS485 communication | 90283010 |
| EM36-C-CE | 3Ø LED kWh meter with 9 digits display, RS485 communication, 40 to 300V AC/DC | 90283010 |
DC Energy Meter
| Product Code | Description | HSN Code |
|---|---|---|
| EMDC2M-1CH-C-1RO | Single channel LED display, 1000V DC & 50mV to 100mV (shunt), RS485 communication & relay output | 90283090 |
Note: MID variant available
