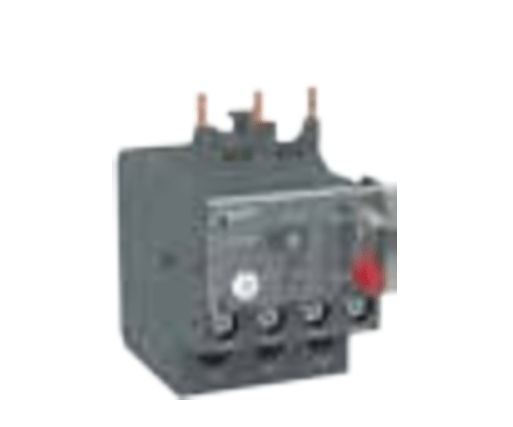

The Schneider Electric Easy TeSys Thermal Overload Relay (LRE Series) is designed to protect motors from overload, phase failure, and current imbalance. Built according to IEC 60947-4-1 standards, these relays ensure long-lasting and reliable performance in industrial environments.
These relays can be directly mounted with contactors or used independently, making them suitable for a wide range of applications including motor control panels, automation systems, and electrical distribution setups.
Key Features:
– Adjustable current range from 0.1A to 630A
– Tripping class: 10A
– Compact and robust design
– Easy installation and maintenance
– Suitable for industrial motor protection
Applications:
– Motor Protection Systems
– Control Panels
– Pumps & Compressors
– HVAC Systems
Thermal Protection Adjustment Range (LRE Series)
| Range (A) | Use with Contactor | Reference | Unit MRP (₹) |
|---|---|---|---|
| 0.25–0.4 | E06…E38 | LRE03 | 3170 |
| 0.4–0.63 | E06…E38 | LRE04 | 3170 |
| 0.63–1 | E06…E38 | LRE05 | 3170 |
| 1–1.6 | E06…E38 | LRE06 | 3170 |
| 1.6–2.5 | E06…E38 | LRE07 | 3170 |
| 2.5–4 | E06…E38 | LRE08 | 3170 |
| 4–6 | E06…E38 | LRE10 | 3170 |
| 5.5–8 | E09…E38 | LRE12 | 3170 |
| 7–10 | E09…E38 | LRE14 | 3170 |
| 9–13 | E12…E38 | LRE16 | 3170 |
| 12–18 | E18…E38 | LRE21 | 3515 |
| 16–24 | E25…E38 | LRE22 | 3900 |
| 23–32 | E25…E38 | LRE32 | 5425 |
| 30–38 | E38 | LRE35 | 6115 |
| 17–25 | E40…E95 | LRE322 | 6895 |
| 23–32 | E40…E95 | LRE353 | 6895 |
| 30–40 | E40…E95 | LRE355 | 6895 |
| 37–50 | E50…E95 | LRE357 | 6895 |
| 48–65 | E65…E95 | LRE359 | 9050 |
Thermal Protection Adjustment Range (Higher Range)
| Range (A) | Use with Contactor | Reference | Unit MRP (₹) |
|---|---|---|---|
| 55–70 | E80…E95 | LRE361 | 10720 |
| 63–80 | E80…E95 | LRE363 | 11195 |
| 80–104 | E95 | LRE365 | 11195 |
| 51–81 | E120…E300 | LRE460 | 20955 |
| 62–99 | E120…E300 | LRE481 | 20955 |
| 84–135 | E120…E300 | LRE482 | 20955 |
| 124–198 | E160…E300 | LRE483 | 20955 |
| 146–234 | E200…E300 | LRE484 | 20955 |
| 174–279 | E250…E300 | LRE485 | 20955 |
| 208–333 | E300 | LRE486 | 22835 |
| 258–414 | E300…E400 | LRE487 | 27790 |
Accessories for Relay
| Accessory | For Relay | Reference | Unit MRP (₹) |
|---|---|---|---|
| Separate Mounting Block | LRE01…LRE35 / LRE322…LRE365 | LAEB1 / LAEB3 | 1135 / 2625 |
